PVC Window Four Head Welder，Four Head PVC Welding Machine,uPVC Window Machine

Ask Lasest Price
Brand Name :	Saint Best
Model Number :	*SBT-CSHZ4-1204500**
Certification :	Valid
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	18Sets/Month
Delivery Time :	10~20Days

Add to Cart

Product Details
Company Profile

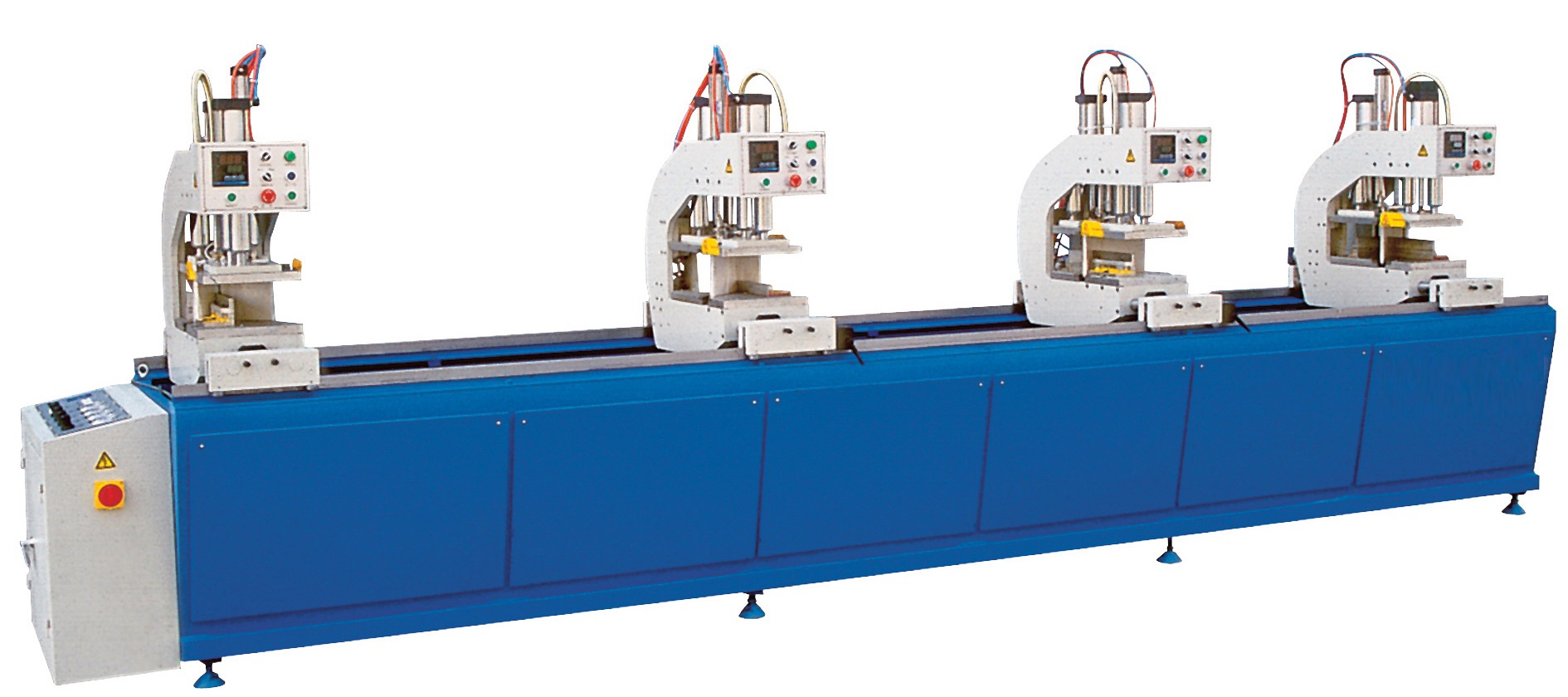

PVC Window Four Head Welder，Four Head PVC Welding Machine,uPVC Window Machine

PVC Window Machinery / Four Head Welder

uPVC / PVC / Vinyl Door and Window Four Head Welding Machine / UPVC Window Fabricating Machine

uPVC / PVC / Vinyl Door and Window 4-Head Welding Machine

Quick Details

Place of Origin: China (Mainland)
Brand Name: Saint Best
Model Number: SBT-CSHZ4-120*4500
Voltage: 220V
Power: 4.5kw
Frequency: 50Hz
Welding Area: 400~4500mm
Dimensions: 5300*950*1700mm
Weight: 2000KG
Usage: PVC profile welding
After-sales Service Provided: Engineers available to service machinery overseas
Products: PVC / UPVC window automatic high frequency welding machine
Color: Your needs
power suply: 220v/50Hz
Air consumption: 200L/min
Air pressure: 0.6-0.8mpa
Welding height: 20~120mm
Welding range: 400~4500mm
Material: Stainless steel
Warranty: 1 year
Overall dimension: 5300*950*1700mm

Packaging & Delivery

Packaging Details:	1 set in one wooden case for automatic high frequency welding machine
Delivery Detail:	15 workingdays

PVC / UPVC Window Automatic Welding Machine

Specifications

Factory supply PVC / UPVC window automatic welding machine
1.Welding PVC profile with four head
2. High precision mechanical parts
3. Imported components: OMRON & SCHNEIDER& FESTO&STNC

Equipment Configuration

Features:

- Factory supply PVC / UPVC window automatic high frequency welding machine

- Most popular machinery type with 2mm welding.

-Various angles welding between 30 to 180 degree is available on last machine head.

-Solid machinery base and structure ensure long life service with high dimension accuracy.

-profile fixture ordered separately can meet various height profiles' processing requirement

-Special profile fixture is easy to change, for high corner strength and later good cleaning

- Each machine head can be working separately or combination.

UPVC Window Fabricating Machine. Used for corner and mullion welding of PVC profile.

Four head can work separately or cooperatively,flexible combination.

PLC controls the welding action / program, high reliability.

The right welding head can 45~180 degree angle welding.

Parameters can be set to meet various profiles' processing requirements.

High welding precision.

Adopt high quality electrical and pneumatic components with high reliability.

Good welding corner appearance.

Parameter:

Input Voltage	1N~50Hz 220V or Customized	Input Power	4.5(kw)
Operation Air Pressure	0.6~0.8(MPa)	Air Consumption	200(L/min)
Welding Height	20---120 (mm)	Welding Width	400~4500 (mm)
Overall Dimension	5300×950×1700(mm)	Machine Weight	2000(kg)
Max Welding Width	120 (mm)

Main Accessory:

Temperature Controller	Omron
PLC	Omron, Misibisi
Cylinder	JPC (Festo China)
Motor	Anhui Sanyang/Zhenyang
Saw Blade	Uniken
Mechanical Parts	High Precision
Air Filter Device	STNC
Electrical Button and Switcher	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switcher	Swiss CONTRINEX or Japan Omron

Machine Processing

SAINT BEST GROUP selected each part carefully , we are strive to quality first when machine production and test each machine before delivery. So we will provide the best machine for you.uPVC Window Four-Head Welding Machine,PVC Door and Window 4-head Welding Machine,UPVC Window Fabricating Machine,Four-head Seamless Welding Machine (Double Side),Four-head Seamless Welding Machine,UPVC window welding machine,PVC profile welding Machine,4 head PVC window welding equipment,Four-Head Seamless Vinyl Window Welding Machine,Four-Head Vinyl Window Welding Machine.

Qualit Control

SAINT BEST GROUP engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.

After machine production finished, the products will be tested in professional ways make sure its performance.Four-Head Welding Machine for PVC Windows Doors Profies,Four-Head Welding Machine for PVC Windows Doors,Four-Head Welding Machine for PVC Windows &Doors Profies,Four-Head Welding Machine for PVC Windows&Doors,Four-Head Welding Machine for Vinyl Windows Doors Profies,Four-Head Welding Machine for Vinyl Windows Doors.

Packaging & Shipping

SAINT BEST GROUP produce high quality machines, also pay attention to package.

The machines will be packed with steel pallet and standard export wooden case,

to make sure customer will receive the machines they ordered Intact.Four-Head Welding Machine for Vinyl Windows &Doors Profies,Four-Head Welding Machine for Vinyl Windows&Doors,Four-head Welding Machine for PVC/Vinyl Windows Doors Profies,Four-head Welding Machine for PVC/Vinyl Windows Doors,Four-head Welding Machine for PVC/Vinyl Windows&Doors Profies,Four-head Welding Machine for PVC/Vinyl Windows&Doors Profies,PVC Welding Machine.

Our Services

Before Sale:

Free contact for the most suitable machine

Free professional design for each customer especially.

After sale service :

24 hours technical support by phone, email or skype (email or skype) .

1years warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

Payment Terms :

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal

A,12month warranty

B,1%-2% spare parts

C, OEM&ODM are welcomed

D,Trail orders are available

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.PVC Window Welding Machine,PVC Windows Machine,Four-Head Seamless PVC Welding Machine,Two Head Welding Machine,Three Head Welding Machine,Two Head PVC Welding Machine,Three Head PVC Welding Machine,Four-Head Seamless PVC Welding Machine,Two Head Welding Machine,Three Head Welding Machine.

Saint Best Group always looking for long term cooperaion, not one time deal

Our Advantage:

Our company owns excellent team of research and development and technician which lay foundation of high-quality machine. We use are imported components and after machine production finished, the products will be tested in professional ways make sure its performance.Two Head PVC Welding Machine,Three Head PVC Welding Machine,Four-Head Seamless Welding Machine,Four-Head Seamless PVC Welding Machine,Seamless PVC Welding Machine,Three-Head Seamless PVC Welding Machine,Four-head Seamless Welding Machine for PVC/Vinyl Windows, Four-head Seamless Welding Machine for PVC Windows, Four-head Seamless Welding Machine for Vinyl Windows.

FAQ

1. Question:Are you manufacture?

Answer:

Yes,we are the professional manufacture which have more than 5 workshops.

2.Question: About this Machine,What’s the guarantee ?

Answer:

1).Our guarantee for 12 months.

2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).We will provide the consumable parts at an agency price

5).24 hours on line service each day, free technical support.

3.Question:Why your price is higher than another company or factories ?

Answer: please check, what is is the differences of the machine of parts ,service and guarantee,especially the machine inner electric parts.Four-head Seamless Welding Machine for PVC/Vinyl Windows&Door, Four-head Seamless Welding Machine for PVC Windows&Door, Four-head Seamless Welding Machine for Vinyl Windows&Door,PVC Four-Head Welding Machine,Plastic Door and Window Machine,Four-Head Welding Machine for Plastic Door and Window,Four-Head Seamless Welding Machine for Plastic Door and Window,PVC Four-Head Welding Machine,UPVC Welding Machine,PVC windows machine, UPVC windows machine,PVC windows and doors machine.
